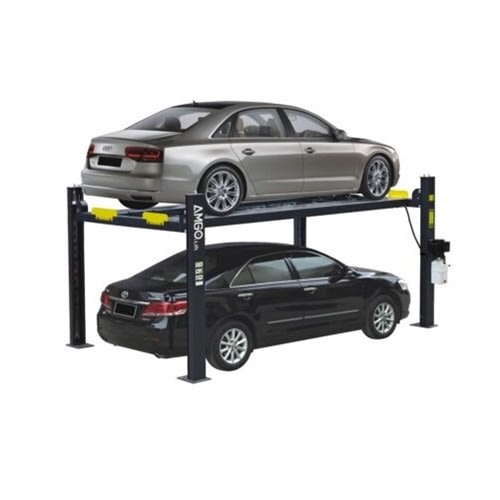

AMGO 408-P
8,000 LBS. CAPAPCITY PARKING AUTO LIFTS
The AMGO 408-P is a true space-saving powerhouse. It is the perfect service lift for shops and home car ports with limited floor space with performance maximization in mind. The 408-P requires no special foundation or complicated installation and is about the size of a typical parking space. These features, and more, make the AMGO 408-P one of the best commercial or private use lifts in the world. The 408-P is the perfect choice for commercial shops or residential car ports trying to save space with a capacity of 8,000 lbs.
- 8,000 lbs. capacity, which is perfect for light-duty vehicles
- AMGO exclusive hidden safety locks and manual single-point release device allows for operators to unlock the safety locks from one column simultaneous.
- Double-S shaped columns help increase the columns strength
- Skid proof diamond platform provides traction for the tires to stay put.
- Optional parts: 4 plastic drip trays,1 jack tray and caster kits set of 4
- Flexible Design: The power side column can be installed at any corner
- Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components

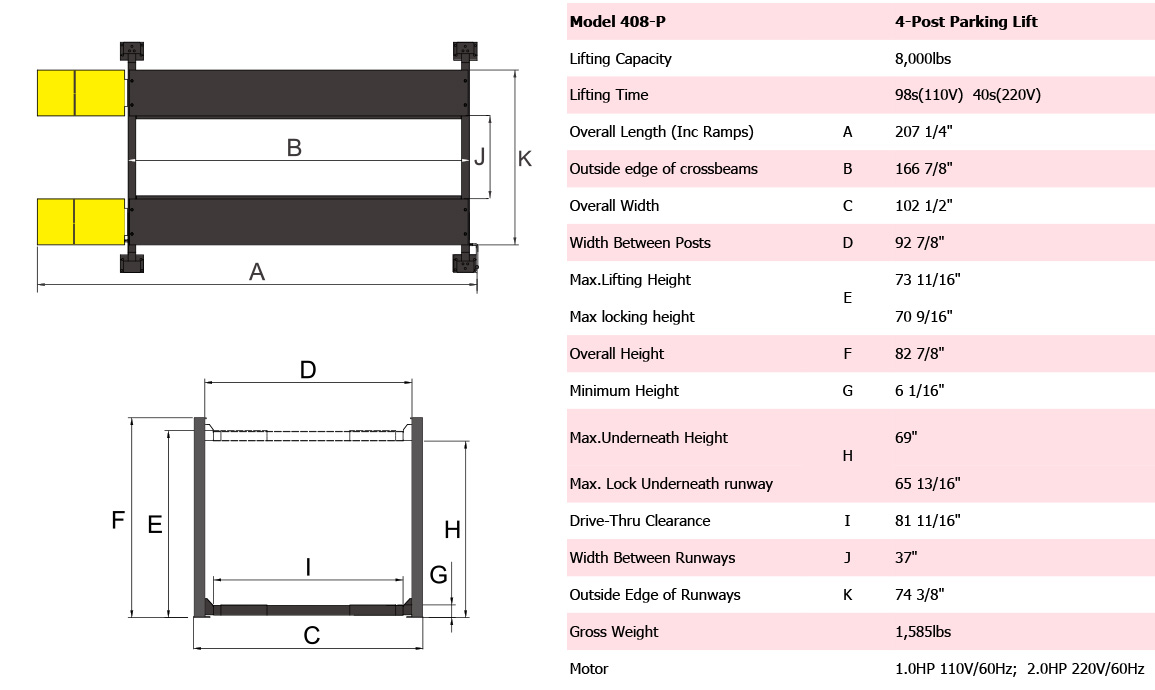

Model 408-P
Lifting Capacity 8,000lbs (3600kg)
Lifting Time 97S
A：Overall Length (Inc Ramps) 207" (5257mm)
B:Overall Length (No Ramps) 173 1/4" (4400mm)
C:Overall Width 109 5/8" (2784mm)
D: Width Between Columns 96" (2438mm)
E:Lifting Height 73 3/4" (1872mm)
F:Overall Height 82 7/8" (2105mm
G:Width Between Platforms 37"(940mm)
H:Platforms outer width 74 3/8" (1890mm)
Gross Weight 2,006 lbs (832Kg
Motor 110V 1.5HP
| Model |
408-P |
| Lifting Capacity |
8,000lbs (3600kg) |
| Lifting Time |
97S |
| A：Overall Length (Inc Ramps) |
207" (5257mm) |
| B:Overall Length (No Ramps) |
173 1/4" (4400mm) |
| C:Overall Width |
109 5/8" (2784mm) |
| D: Width Between Columns |
96" (2438mm) |
| E:Lifting Height |
73 3/4" (1872mm) |
| F:Overall Height |
82 7/8" (2105mm) |
| G:Width Between Platforms |
37"(940mm) |
| H:Platforms outer width |
74 3/8" (1890mm) |
| Gross Weight |
2,006 lbs (832Kg) |
| Motor |
110V 1.5HP |

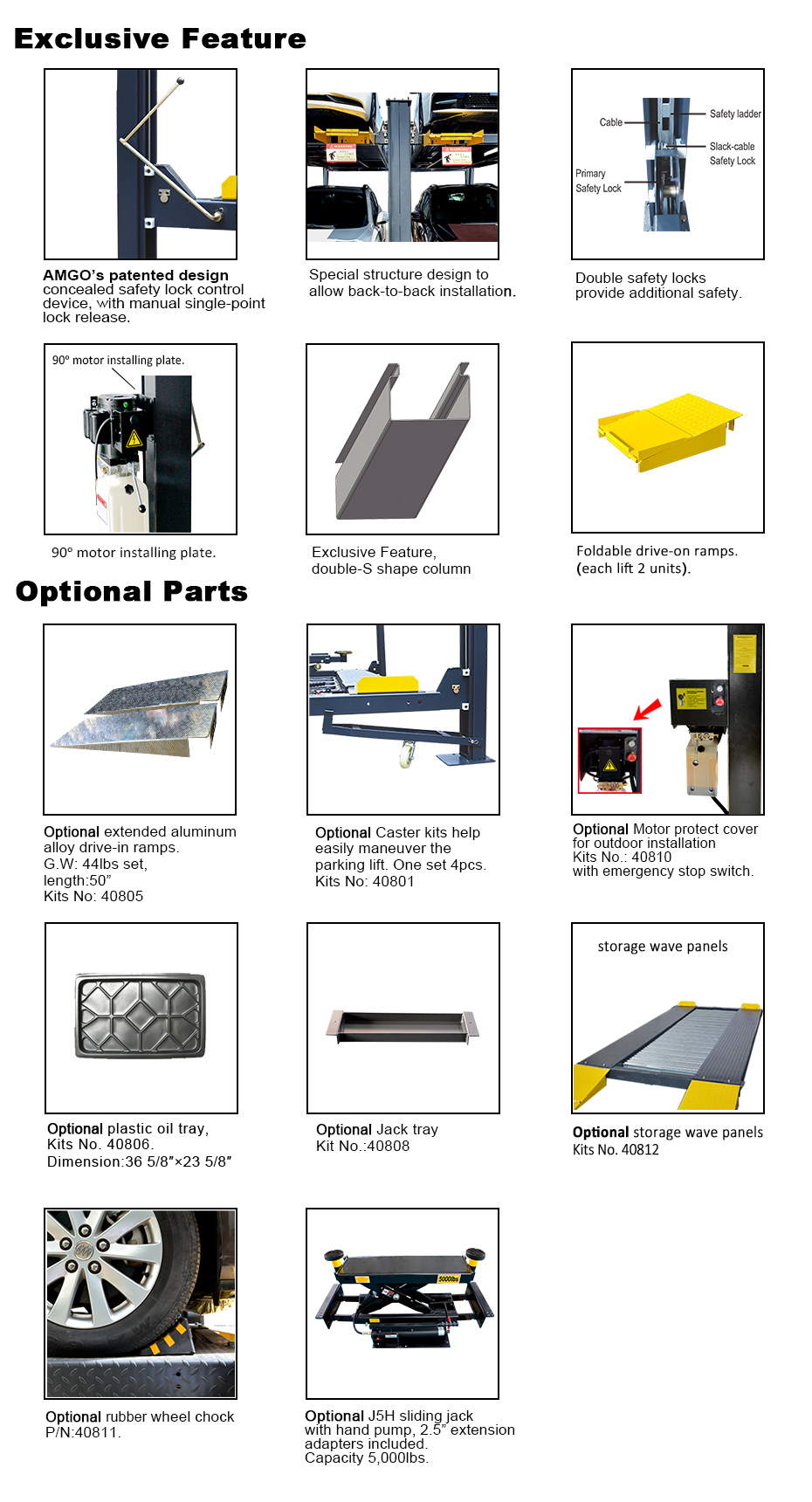

Detailed Images
Commercial double safety locks provide additional safety. |
90° installation plate for installing the power unit at the side of a column. Kit No.: 40802 |
Hidden locking device and manual single-point safety lock release |
Double-S Shaped columns |
Optional Caster Kit help easily maneuver the parking lift. Each 4-post parking needs 4 pieces of caster. Kit No: 40801 |
Optional J5H sliding jack with hand pump. 1.5”and 2.5”extension adapters included. Capacity: 5,000 lbs. |
Drip Trays Optional 408-P： Kits No.:410140 Specifications 930*600mm 409-P/409-HP： Kits No.: 410141 Specifications 1067*600mm |
Weight for one set, which includes 2 pieces, is only 18kg (40 lbs). Kit No.: 40803 |
|
