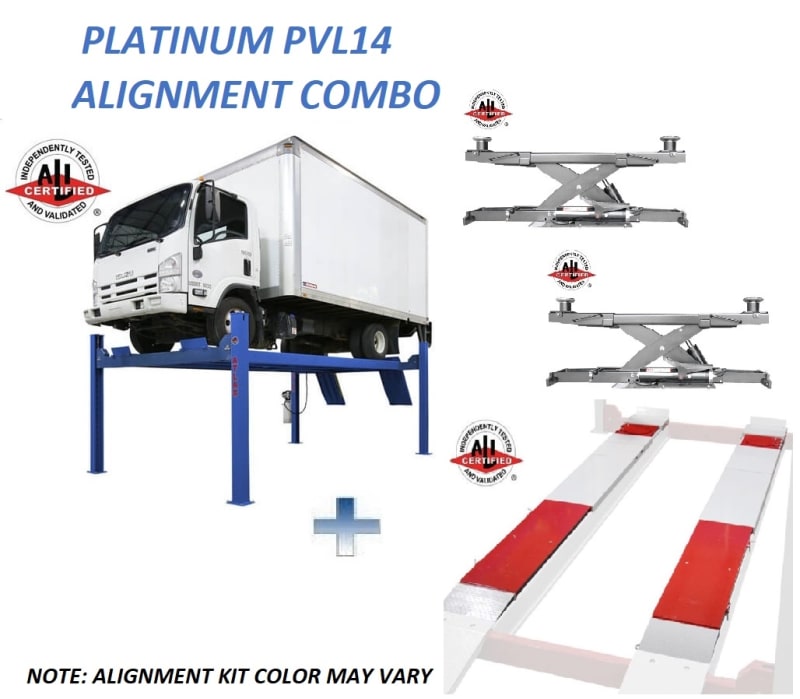

Atlas Platinum PVL14 ALI Certified Complete Alignment Combo (WILL CALL)

Features and Benefits:

• ALI CertifiedCombo iincludes PVL14 14,000 lb. lift, Alignment Kit, & two RJ7000 rolling jacks
• Heavy Duty, Commercial Grade
• Lift is Extra Tall, Extra Wide & Extra Long
• Lift has Air Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)
• Steel Approach Ramps Included
• Additional Drive off Ramps Available (Sold Separately)
• Mounting Hardware Included
• Alignment Kit Includes Spacers, Ramps, Slip Plates, and Turntables
• Alignment Kit Bolts on Runways
• Truck Adapter Set for each Jack Included
• This part number WILL CALL ONLY

The Atlas® Platinum PVL14 is a four post commercial grade Heavy-Duty lift designed with the professional shop in mind. This lift can accommodate a variety of cars, vans, SUVs, trucks, and even some light & medium duty commercial vehicles.

The Platinum PVL14 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.

The Atlas® Platinum PVL14 is also ALI certified and backed by one of the industrys best warranties for an added peace of mind.

This product features an ALLY Hydraulic AL2650 power unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

This combo package also includes the Atlas® Platinum bolt-on Alignment Kit and two of the the popular Atlas® Platinum RJ7000 rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

Atlas® Platinum PVL14 Specifications

• Capacity 14,000 lb.
• Lifting Height 76 1/2" (6' 4 1/2")
• Overall Width Of Columns (Without Motor) 131 3/4" (10' 11 3/4")
• Overall Width Of Columns (With Motor) 140 1/2" (11' 8 1/2")
• Overall Length With Approach Ramp 251 1/2" (20' 11 1/2")
• Length Between Columns 196" (16' 4")
• Runway Length 205 1/2" (17' 1 1/2")
• Runway Width 20"
• Thickness Of Runway 7"
• Width Between Runways 42 3/4" (w/ Rail 39 1/4")
• Outside Runway To Outside Runway 83 1/8" (6' 11 1/8")
• Clearance Under Runways 69 1/2" (5' 9 1/2")
• Clearance Between Columns 116 3/8" (9' 8 3/8")
• Height Of Columns 92 1/2" (7' 8 1/2")
• Maximum Wheel Base 195" (16' 3")
• Drive Thru 94 1/2" (7' 10 1/2")
• Air Requirement 85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
• Motor/Electrical Requirement 220 volt single (1) phase.(A 30 amp breaker is recommended)
• Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
• Shipping Weight 2,800 LBS.
• Requires a minimum of 6" of concrete with a 3000 psi. rating

• The Atlas® Platinum RJ7000 Specifications:

  • Minimum Width: 36"
  • Maximum Width: 45 1/2"
  • Distance Between Runway Capability: 36" - 45"
  • Minimum Lifting Height: 12 1/2"
  • Maximum Lifting Height (w/ Adapters): 27 1/2"
  • Double Screw-Up Adapter Pad 1 1/2" - 4"
  • Air Requirement: 70-115 PSI
  • Shipping Weight: 390 lbs

  Atlas® Platinum Alignment
