Amgo Hydraulics 409-DPX 9,000 lbs. Double-wide Auto Parking Lift

Longer and higher model of 409-DP. More space created to park higher vehicles underneath, like SUV, light truck, etc.

Click to download Product Manual

Description

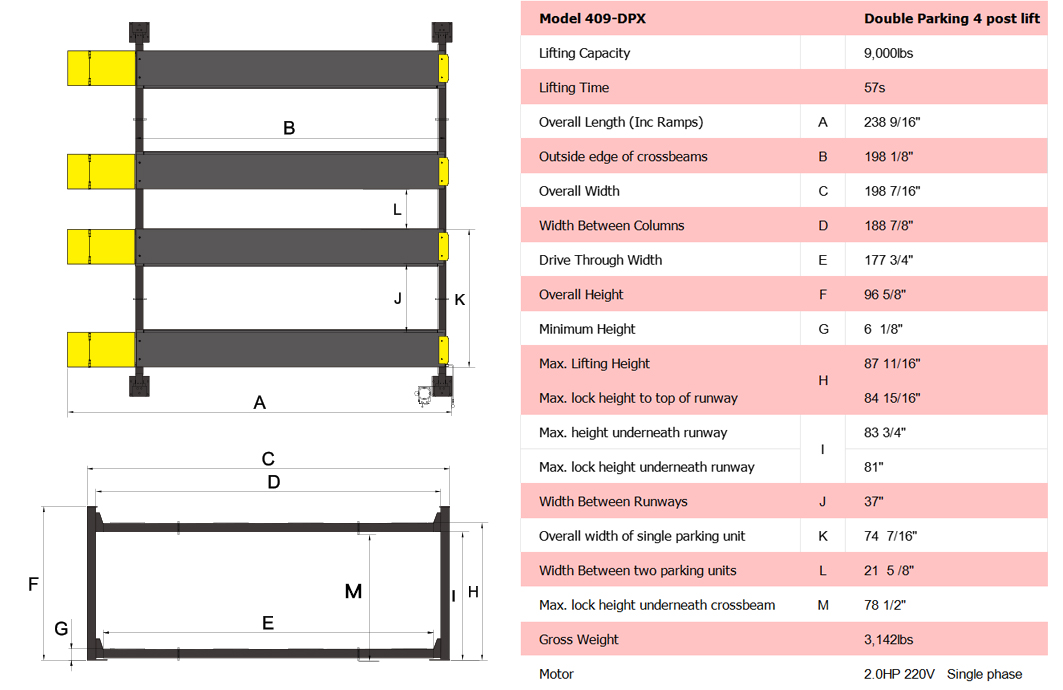

• Lifting capacity: 9,000lbs, max. car weight:6,000lbs.
• Max lifting height: 87 11/16” .
• Low profile design, minimum platform height only 6 3/32″.
• Both primary & slack-cable safety devices as standard.
• Exclusive: hidden safety locks and manual single-point safety release.
• Exclusive: Foldable drive-on ramps of 4 units.
• Exclusive: Ingenious designs to minimize the package size, reduces the transportation charge and storage cost.
• Exclusive: Double S Shaped columns for increased strength.
• Non-slip diamond platforms.
• Adjustable multiple safety ladders.
• 110V power unit is worked with the lift (lifting time: 120s), please specify when ordering.

Exclusive Feature

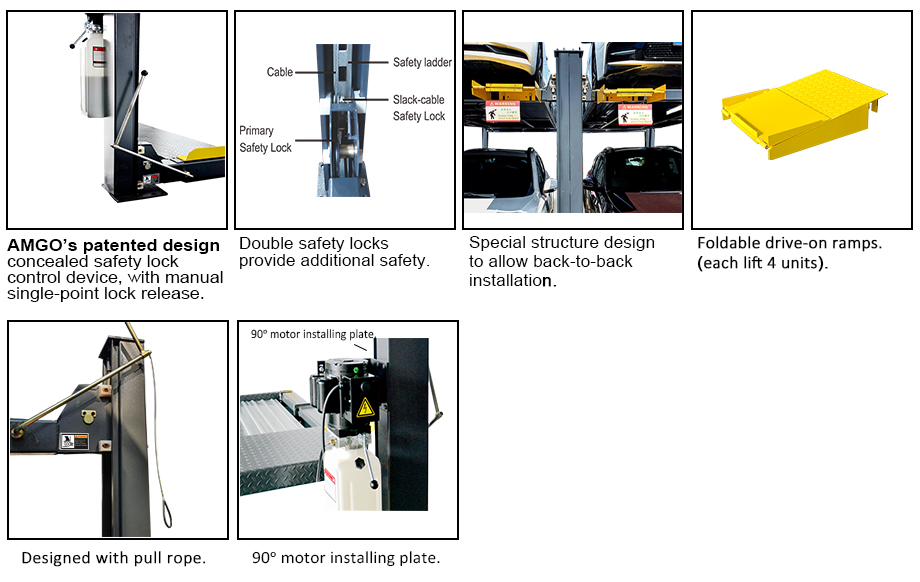

Hidden locks and manual single-point safety release.	Double safelty locks provide additional safety.	Special Structure design to allow back-to-back installation.	Foldable drive-on ramps. (each lift 4 units).
Designed with pull rope.	90° motor installing plate.

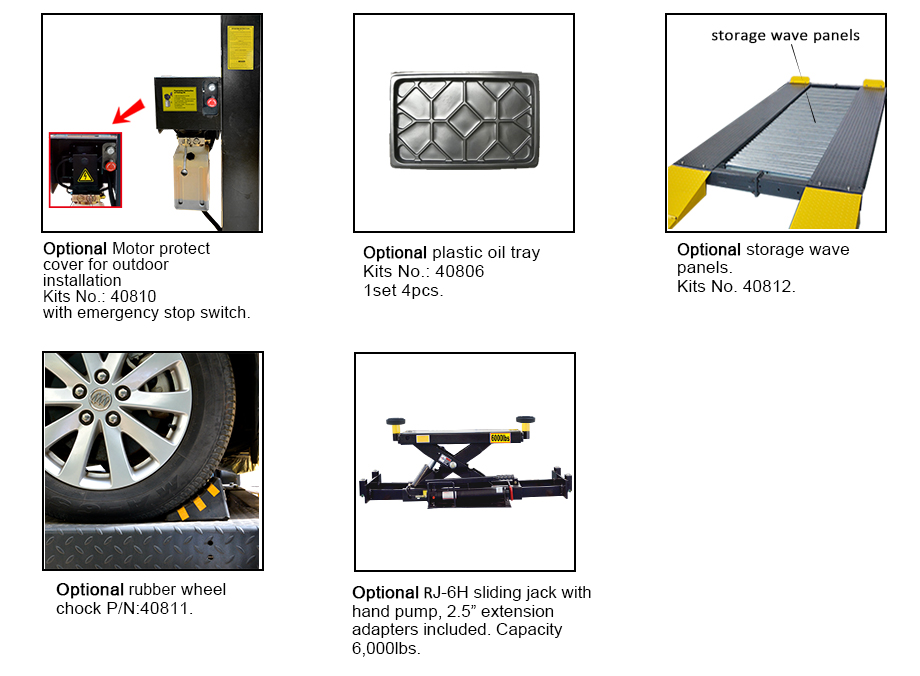

Optional Motor protect cover for outdoor installation. Kit No.: 40810 with emegency stop switch.	Optional plastic oil tray kit No. : 40806, 1 set 4 pcs.	Optional storage wave panels. Kit No. : 40812	Optional rubber wheel chock P/N: 40811.
Optional J5H sliding jack with hand pump, 1.5" and 2.5" extension adapters included. Capacity 5,000 lbs.
