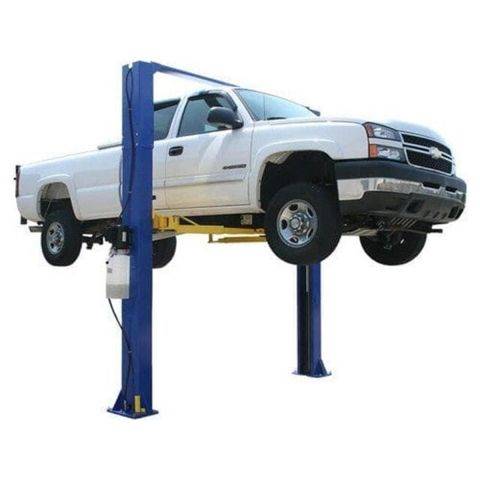

Atlas XH9KOHX, 9KOH Overhead 9,000 lb. Capacity 2-Post Lift

Atlas 9KOH

Alternative Views:

Your Price: $2,699.00
Call us at 888-998-8665 for our current Atlas promotion.

Quantity in Stock :443

Product Code: ATEXH-9KOHX-FPD

Unloading Equipment

I have the equipment to unload it.
Ship to local freight terminal for will call.
Ship to an installer for delivery & install.
Please call me for other options for delivery.

Qty:

Description

Specifications

Atlas® 9KOH Overhead 9,000 lbs. Capacity 2 Post Lift

The Atlas 9KOH 9,000 lb. Light Duty Two Post Lift is an economy designed clear floor vehicle lift with reliable chain-drive cylinders and automatic arm restraints making this the perfect choice for the “Mr. Homeowner” looking to service cars, SUV’s and light duty trucks.

The Atlas® 9KOH can be adjusted to two different height settings: 11' 6" or 11' 10"

The Atlas® 9KOH is the perfect choice for those customers who demand the most lifting capacity at the lowest possible price.

The Atlas® 9KOH has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks.

The Atlas® 9KOH includes: an 8 piece set of solid peg type truck adapters, mounting hardware, a set of sliding arm adapters, and a 220 volt single phase power unit that can be mounted on either side of the lift. (The power unit column must be on the correct side).

The Atlas® 9KOH two post “chain over roller” lifts have a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.

Atlas® 9KOH Specifications
Capacity	9,000 LB.
Lifting Time	Ask Your Salesperson
Overall Height	142" (11' 10") or 138" (11' 6")
Overall Width	141" (11' 9") (With Power Unit) 134 ¼" (11' 2 ¼")
Outside Column To Outside Column	124 5/8" (10' 4 5/8")
Maximum Lift Height (Without Adapters)	74" (6' 2")
Maximum Lift Height (With Adapters)	80 ¼" (6' 8 ¼")
Padded Bar Height	136" (11' 4") or 132" (11')
Minimum Arm Height	4"
Inside Column	109 ¾" (9' 1 ¾")
Column Size	7 ¼" x 11 ?"
Drive Thru Symmetric/Asymmetric Arm Configuration	100" (8' 4") 90 ½" (7' 6 ½")
Base of Lift	14 ¼" x 18"
Column Thickness of Steel	5mm
Carriage Thickness of Steel	6mm
Arms Thickness of Steel	6mm
Cable Diameter	.375"
Motor/Electrical Requirement	220V single (1) phase. A 30 amp breaker is required.
Oil Requirement	3-5 Gallons AW32/AW46
Shipping Weight	1,450 LB.
Requires a minimum of 4" of concrete with 3000 psi.

Atlas® Two Post Overhead Comparison Chart
Attribute	9KOHX	9OHSC	OHX10X	PV10P	PV12P	PV15P
Capacity	9,000 LB .	9,000 LB .	10,000 LB .	10,000 LB .	12,000 LB .	15,000 LB .
Overall Height	138" (11’ 6") or 142” (11’ 10”)	142" (11’ 10")	152" (12’ 8”)	143 1/8" (11’ 11 1/8”) or 146 7/8” (12’ 2 7/8”)	165" (13’ 9”) or 177” (14’ 9”)	165" (13’ 9”) or 177” (14’ 9”)
Overall Floor Width	134 1/2" (11’ 2 1/2")	133 1/2" (11’ 1 1/2")	144 3/8" (12’ 3/8")	137 1/2" (11’ 5 1/2”)	150 3/8" (12’ 6 3/8”)	151 3/8" (12’ 7 3/8”)
Outside Column to Outside Column	124 7/8" (10’ 4 7/8")	125 1/2" (10’ 5 1/2")	136" (11’ 4")	125" (10’ 5")	139 1/8" (11’ 7 1/8")	139 1/8" (11’ 7 1/8")
Maximum Lift Height (Without Adapters)	74 1/2"	76 3/4"	74 3/4"	71 7/8"	72 1/8"	75 1/8"
Maximum Lift Height (With Adapters)	81"	87 3/4"	85 3/4"	82 7/8"	83 1/8"	86 1/8"
Minimum Arm Height	4"	4"	4 1/2"	4 3/8"	4 1/2"	7 1/4"
Inside Column	110” (9’ 2”)	109 1/2” (9’ 1 1/2”)	118 1/4” (9’ 10 1/4”)	110 3/8” (9’ 2 3/8”)	122 5/8” (10’ 2 5/8”)	123 1/2” (10’ 3 1/2”)
Drive Thru	100” (8’ 4”) Symmetric/ 90 1/2" (7’ 6 1/2”) Asymmetric	100 1/2” (8’ 4 1/2”)	106 7/8” (8’ 10 7/8”)	96” (8’)	108 5/8" (9’ 5/8”)	109 7/8" (9’ 1 7/8”)
Base Of Lift	14 1/4" x 18"	16 3/4" x 17 3/4"	18 1/2" x 21 1/2"	17 1/2" x 20 1/2"	17 1/2" x 20 1/2"	17 1/2" x 20 1/2"
Motor/Electrical Requirement		220 volt single (1) phase . A 30 amp breaker is recommended

Features

9,000 LB. Capacity
Light Commercial Grade
"Padded" Shut-Off Bar
Asymmetric/Symmetric Arms
Clear Floor Design
Powder Coat Finish
Dual Hydraulic Chain-Drive Cylinders
Dual Point Lock Release
Secondary Lock System (SLS)
Free 8 Piece Truck Adapter Set
Automatic Arm Restraints
Mounting Hardware Included
Shipping Weight: 1,450 lbs.
