Atlas® 4-Post Hobbyist Specifications

Attribute

Pro7000ST

Pro9000

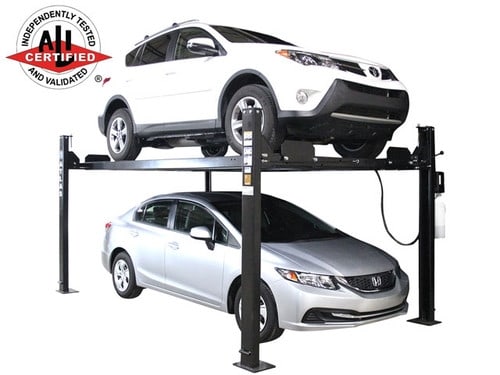

APEX 8

APEX 9

Capacity

7,000 lb .

9,000 Lb .

8,000 lb .

9,000 lb .

Clearance Under Runways

142” (11’ 10”)

80 1/4” (6’ 8 1/4”)

67" (5' 7")

81 1/4" (6' 9 1/4")

Height of Columns

162” (13’ 6”)

95 3/4” (7’ 11 3/4”)

86 5/8" (7' 2 5/8")

99" (8' 3")

Overall Width (Without Motor or Casters)

110 1/2” (9’ 2 1/2”)

123 1/2” (10’ 3 1/2”)

104" (8' 8")

121 7/8" (10' 1 7/8")

Overall Length with Approach Ramps

227 1/2” (18’ 11 1/2”)

227 1/2” (18’ 11 1/2”)

207 5/6" (17' 3 5/6")

227 1/2" (18' 11 1/2")

Runway Length

194” (16’ 2”)

199 1/2” (16’ 7 1/2”)

169 1/2" (14' 1 1/2")

196 1/2" (16' 4 1/2")

Outside Runway to Outside Runway

83” (6’ 11”)

79” (6’ 7”)

75 1/4 (6' 3 1/4")

79" (6' 7")

Clearance Between Columns

100” (8’ 4”)

110 1/2” (9’ 2 1/2”)

94" (7' 10")

108 1/8" (9' 1/8")

Length Between Columns

185” (15’ 5”)

184 1/2” (15’ 4 1/2”)

157 1/3" (13' 1 1/3")

184 1/4" (15' 4 1/4")

Maximum Wheel Base

182” (15’ 2”)

187” (15’ 7”)

154 (12' 9")

184" (15' 4")

Drive Thru (Outside tire to outside of tire)

82 1/2” (6’ 10 1/2”)

97 1/4” (8’ 1 1/4”)

80 1/4" (6' 8 1/4")

98 5/8" (8' 2 5/8")
