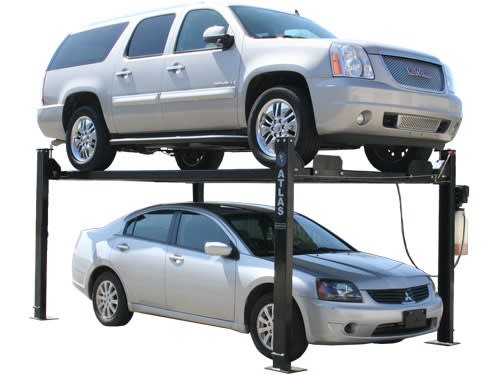

Atlas XHPRO8000, Garage Pro 8000 Portable 8,000 lb Capacity 4-Post Lift

Atlas XH-PRO8000

Alternative Views:

Your Price: $3,199.00
Call us at 888-998-8665 for our current Atlas promotion.

Quantity in Stock :96

Product Code: ATEXH-PRO8000

Unloading Equipment

I have the equipment to unload it.
Ship to local freight terminal for will call.
Ship to an installer for delivery & install.
Please call me for other options for delivery.

Qty:

Description

Specifications

Atlas XH-PRO8000

Atlas:
Atlas is proud to announce the arrival of the newest in our Atlas series of quality lifts:

The Atlas Garage Pro 8,000 LB. capacity 4 post storage/service Lift.

We believe that the Atlas brand above ground auto lift offers a competitive priced above ground auto lift that offers more features and benefits than the ever increasing number of "Chinese" auto lifts sold by no-name Internet marketers.

Lock Ladder Column Design:
The new Atlas Garage Pro 8,000 lb. Storage Lift has the "lock ladder" column design system. We believe that the lock ladder system is the safest locking system for any four post lift. The lock ladder system also provides an infinite number of runway locking positions. The "old-style" welded locks could not be adjusted. The lock ladder is adjustable inside the column so that our customers can "micro-manage" the correct runway height to accommodate any vehicle. The "lock ladder" column system is the same column system found on professional grade lifts found in car dealerships and automotive service centers.

Safety Lock System:
This Atlas Garage Pro 8,000 lb. Storage Lift locking system offers a unique two position locking mechanism found only in commercial grade cable style four post lifts.

Flow Restrictor:
The Atlas Garage Pro 8,000 lb. Storage Lift has flow restrictor valves installed in the hydraulic system. Some lifts do not require a flow restrictor.

Wheel Chocks:
Set of 2 (for Free)

Zerk Fittings:
The Atlas Garage Pro 8,000 has zerk fittings in each corner to allow the proper flow of grease to the pulleys that are used to route the oversized cables.

Polyurethane Caster Wheels (Standard):
The Atlas Garage Pro 8,000 comes standard with polyurethane wheels on the caster kit. These no-mar wheels allow the operator to roll the lift over an expensive epoxy floor with little risk of damage. Even if you have and old concrete floor, the polyurethane wheels on the Atlas Garage Pro 8,000 make this lift easier to roll than the caster kit with the steel wheels.

Manual Single Point Release:
The Atlas Garage Pro 8,000 lb. Storage Lift has manual single point release that allows the operator to release all the safety locks at one time.

Does Not Need To Be Anchored To The Floor:
The Atlas Garage Pro 8,000 lb. Storage Lift DOES NOT need to be anchored to the floor. However, if you are using a four post above ground lift many times each day, the lift may "scoot" a little on a smooth concrete floor. All four post lifts will move slightly on a smooth concrete floor if there is a constant flow of vehicles on and off the lift. The stability and integrity of the lift will not be compromised by the slight "scooting" of the four post lift. To eliminate the possibility of any "scooting", we recommend you anchor (with just one anchor) two of the column bases to your concrete floor. This anchoring will prevent the lift from "scooting".

Installation:
Most of our above ground lift customers install their own car lifts. The average time to assemble the Atlas Garage Pro 8,000 lb. Storage Lift car lift is about four hours (two people).

Features

8,000 lb. capacity
Powder coat finish
Diamond plated runways
Single point lock release
Caster kit with polyurethane wheels included
Steel approach ramps included
Steel jack tray included
Three plastic drip trays included
Four wheel stops included
Two rubber wheel chocks included
Perfect for storing or working on vehicles

Atlas XH-PRO8000

Atlas® Garage Pro 8,000 Specifications
Capacity												8,000 LB
Lifting Height To Top Of Runway												72" (6')
Clearance Under Runways												67 1/2" (5' 7 1/2")
Height of Columns												83" (6' 11")
Overall Width (Without Motor)												104 3/8" (8' 8 3/8")
Overall Width (With Motor)												114" (9' 6")
Overall Length with Approach Ramps												207 1/2" (17' 3 1/2 ")
Overall Length without Approach Ramps												175 1/2" (14' 7 1/2")
Approach Ramps												37" (3' 1")
Runway Width												21 1/4" (1' 9 1/4")
Runway Length												165 1/2" (13' 9 1/2 ")
Runway Thickness												4 ½"
Width Between Runways												37 3/8"
Width Between Runway Rails												31 3/4"
Outside Runway to Outside Runway												74 3/4" (6' 2 1/4")
Size of Column												6 1/4" x 3 3/8"
Clearance Between Columns												94 1/2" (7' 10 1/2")
Length Between Columns												157 1/2" (13' 1 1/2")
Base of Column												10 1/8" x 11 3/4"
Maximum Wheel Base												153 1/2" (12' 9 1/2")
Drive Thru (Outside of tire to outside of tire)												80 1/2" (6' 8 1/2")
Cable Diameter												.350"
Gauge Of Steel												6 Gauge (.1875"/ 3/16" / 4.75mm)
Motor												110 Volt. A 30 amp breaker is required.
Oil Requirement												3-5 Gallons AW32/AW46
Shipping Weight												1,720 LB.

Locking Positions Under Runway (+/ - 2")	Locking Positions Top Of Runway (+/ - 2")
19 ½"	24"
25 ½"	30"
31 ½"	36"
37 ½"	42"
43 ½"	48"
49 ½"	54"
55 ½"	60"
61 ½"	66"
67 ½"	72"

Atlas® 4-Post Garage Pro 8000 Series Comparison
Attribute	Pro8000	Pro8000 EXT	Pro8000 EXT-L
Capacity	8,000 lb .	8,000 Lb .	8,000 Lb .
Clearance Under Runways	67 (5' 7")	79" (6' 7")	78 1/2" (6' 6 1/2")
Height Of Columns	83" (6' 11")	98 1/2" (8' 2 1/2")	98 1/2" (8' 2 1/2")
Overall Width (Without Motor)	104 1/2" (8' 8 1/2")	104 1/2" (8' 8 1/2")	108" (9’)
Overall Length With Approach Ramp	206 3/4" (17' 2 3/4")	206 3/4" (17' 2 3/4")	222" (18’ 6”)
Runway Length	165 3/4" (13' 9 3/4")	165 3/4" (13' 9 3/4")	185" (15’ 5”)
Outside Runway To Outside Runway	74 5/8" (6' 2 5/8")	74 5/8" (6' 2 5/8")	77 3/4" (6' 5 3/4")
Clearance Between Columns	94 1/2" (7' 10 1/2")	94 1/2" (7' 10 1/2")	98" (8’ 2")
Length Between Columns	157 1/2" (13' 1 1/2")	157 1/2" (13' 1 1/2")	176 1/2" (14’ 8 1/2")
Maximum Wheel Base	153 1/2" (12' 9 1/2")	153 1/2" (12' 9 1/2")	173" (14' 5")
Drive Thru (Outside Of Tire To Outside Of Tire)	80 1/2" (6' 8 1/2")	80 1/2" (6' 8 1/2")	84" (7’)
