Atlas XHPRO7000ST, ST-7000 Super Tall 4-Post Lift

Atlas ST-7000

Alternative Views:

Your Price: $7,399.00
Call us at 888-998-8665 for our current Atlas promotion.

Quantity in Stock :10

Product Code: ATEXH-PRO7000ST-FPD

Residential Shipping Option

Ship to My Residence. [Add $50.00]

Unloading Equipment

I have the equipment to unload it.
Ship to local freight terminal for will call.
Ship to an installer for delivery & install.
Please call me for other options for delivery.

Qty:

Description

Specifications

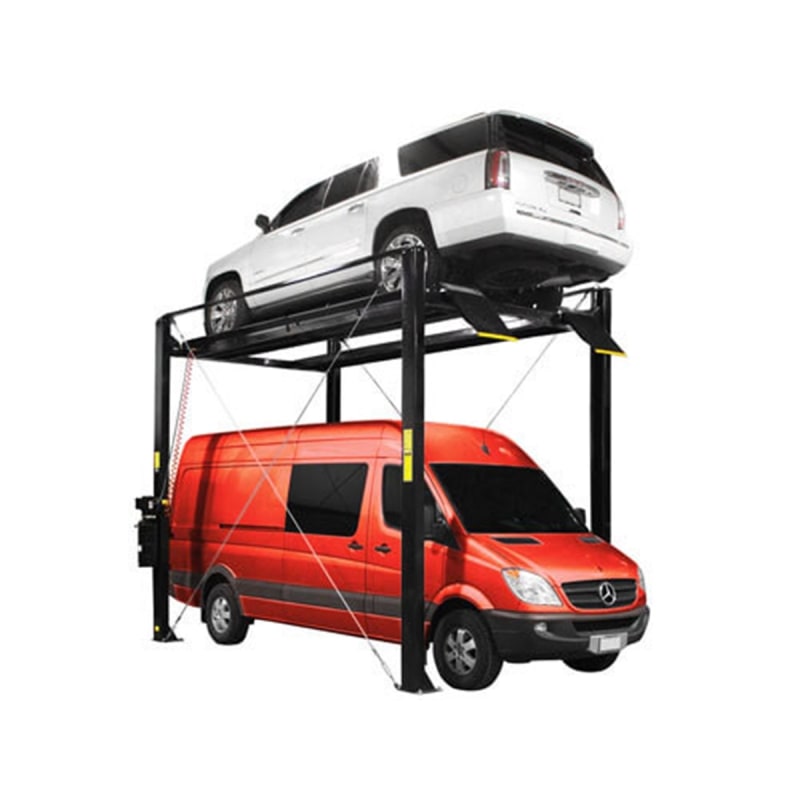

Atlas XH-PRO7000ST

The Atlas® ST-7000 is the perfect lift for those car enthusiasts lucky enough to have extra tall ceilings and need to store regular height vehicles on top of extra tall vehicles. The Atlas® ST-7000 raises vehicles weighing up to 7,000 lbs. all the way to over 12 feet (144 inches) under the runway.

This super tall four post storage lift uses the same heavy duty runways found on the Atlas® GP-9000. These commercial grade runways have welded jack tracks to accommodate the full line of professional rolling center jacks offered by Greg Smith Equipment. The extra tall lifting height gives customers the space needed to park much taller vehicles under the lifted vehicle. There are 21 locking positions in the lock ladder. The lock ladder may be adjusted during installation so that an almost infinite number of locking heights may be obtained.

A single point release toggle (located next to the power unit) automatically unlocks all four spring loaded pneumatic locks. Compressed air is required to disengage the locks (air supply not included). The emergency slack cable secondary lock system is always “on standby” and will engage automatically if the aircraft cables are compromised or becomes too slack.

Atlas XH-PRO7000ST

Atlas® GP-7000ST Specifications
Capacity												7,000 LB
Lifting Height To Top Of Runway												147" (12' 3")
Overall Length with Approach Ramps												227 ½" (18' 11 ½")
Overall Length without Approach Ramps												205 ¼" (17' 1 ¼")
Length Between Columns												185" (15' 5")
Overall Width (With Motor)												123" (10' 3")
Overall Width (Without Motor)												110 ½" (9' 2 ½")
Approach Ramp Length												31 ½" (2' 7 ½")
Total Runway Width												19"
Runway Length												194" (16' 2")
Runway Thickness												4 ½"
Width Between Runways												45" (3' 9)
Width Between Runway Rails												41 ¾" (3' 5 ¾")
Outside Runway to Outside Runway												83" (6' 11")
Clearance Under Runways												142" (11' 10")
Size of Column												7 ½" x 4 ½"
Clearance Between Columns												100" (8' 4")
Base of the Column												11 ¾" x 13"
Height of Columns												162" (13' 6")
Maximum Wheel Base												182" (15' 2")
Drive Thru (Outside of tire to outside of tire)												82 ½" (6' 10 ½") Adjustable by 7 ½"
Cable Diameter												.625" (5/8")
Gauge Of Steel												5 Gauge (.2" / 1/5" / 5mm)
Motor												220V +/- 5% (209-231volts) 1 phase. A 30 amp breaker is required.
Oil Requirement												6 Gallons AW32/AW46
Shipping Weight												2,866 LBS.

Atlas® 4-Post Hobbyist Specifications
Attribute	Pro7000ST	Pro9000	APEX 8	APEX 9
Capacity	7,000 lb .	9,000 Lb .	8,000 lb .	9,000 lb .
Clearance Under Runways	142” (11’ 10”)	80 1/4” (6’ 8 1/4”)	67" (5' 7")	81 1/4" (6' 9 1/4")
Height of Columns	162” (13’ 6”)	95 3/4” (7’ 11 3/4”)	86 5/8" (7' 2 5/8")	99" (8' 3")
Overall Width (Without Motor or Casters)	110 1/2” (9’ 2 1/2”)	123 1/2” (10’ 3 1/2”)	104" (8' 8")	121 7/8" (10' 1 7/8")
Overall Length with Approach Ramps	227 1/2” (18’ 11 1/2”)	227 1/2” (18’ 11 1/2”)	207 5/6" (17' 3 5/6")	227 1/2" (18' 11 1/2")
Runway Length	194” (16’ 2”)	199 1/2” (16’ 7 1/2”)	169 1/2" (14' 1 1/2")	196 1/2" (16' 4 1/2")
Outside Runway to Outside Runway	83” (6’ 11”)	79” (6’ 7”)	75 1/4 (6' 3 1/4")	79" (6' 7")
Clearance Between Columns	100” (8’ 4”)	110 1/2” (9’ 2 1/2”)	94" (7' 10")	108 1/8" (9' 1/8")
Length Between Columns	185” (15’ 5”)	184 1/2” (15’ 4 1/2”)	157 1/3" (13' 1 1/3")	184 1/4" (15' 4 1/4")
Maximum Wheel Base	182” (15’ 2”)	187” (15’ 7”)	154 (12' 9")	184" (15' 4")
Drive Thru (Outside tire to outside of tire)	82 1/2” (6’ 10 1/2”)	97 1/4” (8’ 1 1/4”)	80 1/4" (6' 8 1/4")	98 5/8" (8' 2 5/8")
