Autel MaxiSys ADAS Calibration Tool

The MaxiSys ADAS Calibration Tool by Autel provides the original complete diagnostic functionality, comprehensive and precise ADAS calibration.

With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS is an ideal calibration tool for collision repair, glass replacement and repair shops.

Download the Autel - ADAS Complete Spec Sheet Brochure

Get 100% financing on any of the ADAS Packages. Interest Rate low as 5.5%. Click here to apply online or call us so we can you give you a monthly payment rate. 1-888-998-8665

Autel MaxiSys ADAS Calibration Tool

Advanced Driver Assistance System (ADAS) is becoming standard equipment on today’s new vehicles. These systems are designed to assist drivers to prevent collisions by displaying alerts, providing camera images or by taking instantaneous control of the vehicle. The Autel MaxiSys ADAS provides the original complete diagnostic functionality, comprehensive and precise ADAS calibration. With MaxiSys calibration tools and accurate software, Autel MaxiSys ADAS is an ideal calibration tool for collision repair, glass replacement and repair shops.

MaxiSys ADAS Functions Adaptive Cruise Control (ACC) Control system to automatically adjust vehicle speed to maintain a safe distance from vehicles ahead. Control is based on sensor information from on-board sensors. Lane Departure Warning (LDW) Warns driver when vehicle begins to move out of freeway lane. Designed to minimize causes collisions: driver error, distractions and drowsiness. Night Vision (NV) Uses a thermographic camera to increase a driver’s perception and seeing distance in darkness or poor weather beyond the reach of the vehicle’s headlights. Around View Monitoring (AVM) Provides a virtual 360-degree scene of the car in bird’s-eye view. It assists drivers to park more easily by better understanding the vehicle’s surroundings. Blind Spot Detection (BSD) Vehicle-based sensor function that detects other vehicles located to the driver’s side and vehicle rear, then post a proximity warning. Rear Collision Warning (RCW) Braking at standstill to avoid rear-end collisions. Alert when engine started and cannot turn off. Warn driver of vehicle approach from behind by rapid signal flash. HUD - Head Up Display (HUD) Vehicle speedometer or navigation details projected on the windshield as transparent display so the driver does not need to look away from the road while driving. MaxiSys ADAS Potential Usage GLASS REPLACEMENT SPECIALTY COLLISION REPAIR WHEEL ALIGNMENT

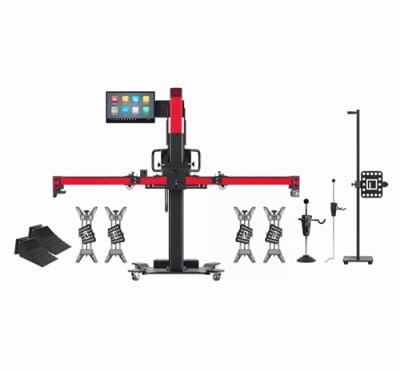

Adjustable Calibration Frame and Tools

The Autel calibration frame provides compatible use with vehicle leveling lifts by offering a taller than average extended adjustable height. Easily and precisely adjust calibration frame crossbar during leveling process to ensure vehicle is correctly centered and parallel while facing targets for calibration.

Flexible Easily Interchangeable Calibration Components with Power Adjustable Frame	Precise Fine-tuning Hand Knob and Laser Positioning for Millimeter Ruler	Adjustable Even on an uneven floor, the calibration frame can be easily raised or lowered to be level with the vehicle

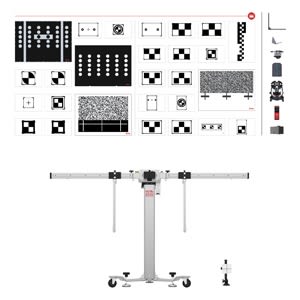

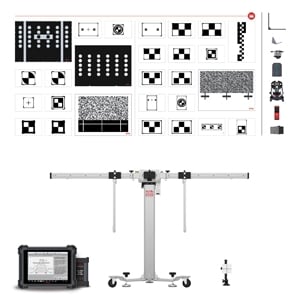

MaxiSys ADAS Calibration Tooling Kit The MaxiSys ADAS provide diverse tools that are easily assembled to complete calibrations for the multi-function vehicle systems: Adaptive Cruise Control, Lane Departure Warning, Night Vision System, Blind Spot Detection, Around View Monitoring, and Rear Collision Warning.

Adaptive Cruise Control (ACC)

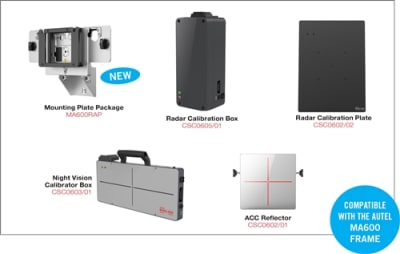

Reflector Positions the calibrate radar for VW, Porsche, BMW, Nissan, Infiniti, Hyundai and KIA vehicles.	Mini Reflector Together with the laser on the calibration frame, adjusts the radar to be vertical to the ground.	Corner Reflector Calibrates radar for Honda, Toyota, Hyundai, and KIA vehicles by attaching to the Calibrator Stand
Radar Calibration Plate Calibrates the Continental radar for Nissan and Infiniti vehicles by attaching to the sliding board on the calibration frame

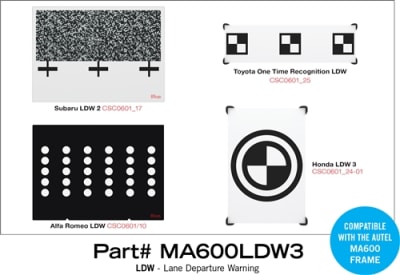

Lane Departure Warning (LDW) Pattern Board & Target Board Holder Paste different patterns for lane departure warning systems calibration of different vehicles. Honda/Acura LDW II CSC0601/08-L Honda/Acura LDW II CSC0601/08-R Honda LDW I CSC0601/05 Toyota/Lexus LDW I CSC0601/11 Toyota/Lexus LDW II CSC0601/15 Hyundai/KIA LDW II CSC0601/09 Mercedes-Benz LDW CSC0601/02 Nissan LDW I CSC0601/03-L Nissan LDW I CSC0601/03-R Nissan/Infiniti/Renault LDW II CSC0601/06-L Nissan/Infiniti/Renault LDW II CSC0601/06-R Nissan LDW I CSC0601/03 Hyundai/KIA LDW I CSC0601/07

Night Vision (NV)

NV Calibrator (Benz) Calibrates night vision system of Benz vehicles.	NV Calibrator (VW, Audi, GM, and Porsche, etc.) Calibrates night vision system of VW, GM and Porsche vehicles by attaching to the sliding board

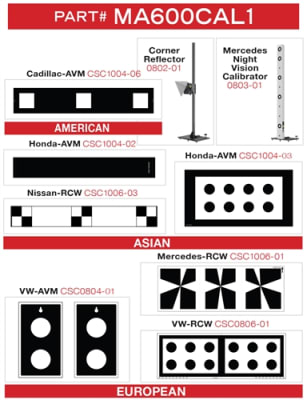

Around View Monitoring (AVM) AMERICAN GM / CHEVY / CADILLAC / BUICK / JEEP / CHRYSLER / DODGE / FORD / LINCOLN Ford-AVM CSC1004/05 Cadillac-AVM CSC1004/06 ASIAN NISSAN / ACURA / HONDA / TOYOTA / LEXUS / INFINITI / KIA / MAZDA / HYUNDAI / SUBARU Honda-AVM CSC1004/03 Honda-AVM CSC1004/02 EUROPEAN BENZ / PORSCHE / AUDI / VW / BMW / MINI / FIAT / VOLVO / JAGUAR / MASERATI Porsche-AVM CSC1004/07 VW, Porsche, etc.-AVM CSC1004/01 VW-RCW/AVM CSC0806/01 VW-AVM CSC0804/01

Blind Spot Detection (BSD)

Radar Calibration Box Calibrates blind spot detection system of VW, Porsche and Mazda vehicles by attaching to the sliding board on the crossbar of the calibration frame.	Corner Reflector Calibrates radar for Honda, Toyota, Hyundai, and KIA vehicles by attaching to the Calibrator Stand.

Rear Collision Warning (RCW)

Mercedes-Benz-RCW CSC1006/01	Nissan-RCW CSC1006/03

Assistance Tools

Laser Identifies whether the vehicle and the pattern are on the same central axis.

Precise MaxiSys ADAS Calibration Software

Based on the powerful MaxiSys platform, Autel presents the MaxiSys ADAS with the original complete diagnostic functions and comprehensive ADAS calibration. Combined with the service manual, the procedures are presented with graphic instruction. The MaxiSys tablet has the best possible OE-level diagnostic coverage to offer complete ADAS and diagnostic solutions for smarter repair and calibration.
