New Autel ADAS Standard Frame LDW All Systems Package WITH MS909 Tablet - LDW30, The 3.0 Version with IA800

Autel LDW30T with IA800
Autel LDW30T

Alternative Views:


Your Price: $18,893.80
Call us at 888-998-8665 for our current Autel promotion.


Free Shipping
Product Code: AULLDW30T
Qty:

Description

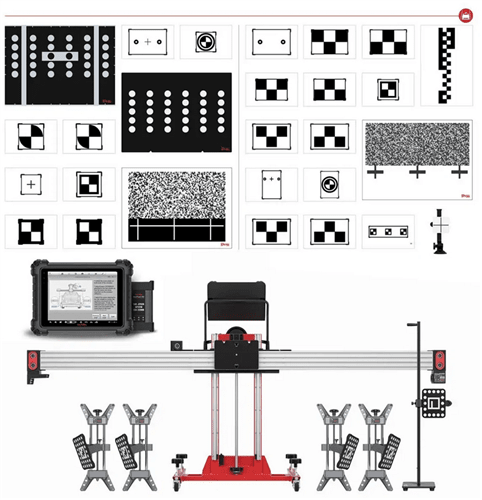

IA800 LDW PACKAGES
EXPANDS LDW CALIBRATION CAPABILITIES

IA800 LDW +TABLET
PART NO: LDW30T
• IA800 CALIBRATION SYSTEM
• LDW TARGETS
• ACCESSORIES
• MAXISYS MS909 TABLET
• MAXIFLASH VCI
• ADAS CALIBRATION SOFTWARE

ACCESSORIES INCLUDED
WHEEL CLAMP 4X
DISTANCE TARGET 1X
WHEEL TARGET 4X
STEERING 1X

(OPTIONAL)
TIRE CLAMPS 4X

LANE DEPARTURE WARNING

  1. VW/AUDI/PORSCHE LDWI CSC0601/01
  2. ALFA ROMEO LDWI CSC0601/10
  3. SUBARU LDWI CSC0601/14
  4. SUBARU LDWII CSC0601/17
  5. NISSAN/INFINITI LDWI CSC0601/06-L
  6. NISSAN/INFINITI LDWI CSC0601/06-R
  7. HYUNDAI/KIA LDWI CSC0601/09
  8. TOYOTA/LEXUS LDWI CSC0601/11
  9. MITSUBISHI LDWI CSC0601/22-L
  10. MITSUBISHI LDWI CSC0601/22-R
  11. MERCEDES LDWI CSC0601/02
  12. HONDA/ACURA LDWI CSC0601/05
  13. MAZDA LDWI CSC0601/12
  14. NISSAN LDWII CSC0601/03-L
  15. NISSAN LDWII CSC0601/03-R
  16. HONDA/ACURA LDWII CSC0601/08-L
  17. HONDA/ACURA LDWII CSC0601/08-R
  18. TOYOTA/LEXUS LDWII CSC0601/15
  19. HYUNDAI/KIA LDWII CSC0601/07
  20. MAZDA LDWII CSC0601/13-L
  21. MAZDA LDWII CSC0601/13-R
  22. MERCEDES LDWII CSC0601/19
  23. HONDA/ACURA LDWIII CSC0601/24-1
  24. NISSAN/INFINITI LDWIII CSC0601/04-L
  25. NISSAN LDWIII CSC0601/04-R
  26. TOYOTA/LEXUS LDWIII CSC0601/25
  27. HYUNDAI/KIA LDWIII CSC0701/23


IA800 Intelligent ADAS: Optical Positioning System

The fastest and most precise calibration frame positioning without mechanical measurement. The Autel Intelligent ADAS Optical Positioning System features six high-resolution cameras to deliver 3-dimensional adjustment for the most accurate frame centering and vehicle distance recognition. Compatible with your existing Autel Standard Calibration Frame, and designed for seamless integration, this new component system optically measures two-wheel clamp targets to significantly cut down setup time and increase placement precision. Most extensive Camera, Radar, Lidar, and Night Vision Calibration Coverage in the industry.

IA800 Intelligent ADAS: Optical Positioning System

6 High-Resolution 3D Imaging Cameras

The IA800 advanced 3D camera technology provides the most accurate and fastest calibration frame placement by removing the tape measure, plumb bobs, string and mirrors from your setup process. Know that your team is using the most current vehicle data and technology, ensuring all calibrations are completed accurately and returned to vehicle owners safely.


Camera Features:

  • Three-Dimensional Scan of Vehicle
  • Measures Distance, Frame Angle and Frame Offset in 1 Step
  • Two Cameras on Each End of Crossbar to Identify Wheel Targets
  • One Camera at Center of Crossbar to Measure Distance
  • One Camera for Self-Calibration

IA800 Expansion Package Also Includes

Know that your team is using the most current vehicle data and technology ensuring all calibrations are completed accurately and returned to vehicle owners safely. The IA800 Expansion Package also includes: 4 Wheel Clamps, 1 Distance Target, 2 ADAS Calibration Targets, 2 Alignment Check Targets, 2 Wheel Chocks, Tablet Support Stand, Steering Wheel Lock, and 24V Power Adapter.

4-Step Intelligent ADAS Workflow

Pre-Check (New Feature)

  • Perform Accurate Alignment Check and Easily Add Confirmation to the Diagnostic Pre-SCAN Report
  • Quickly Identify Wheel Alignment Issues that Can Affect the Accuracy of Calibration
  • Use the Pre-CHECK Function Alone to Generate Revenue From Needed Suspension Repair, Without Tying Up Your Alignment Machine.

Position

  • Eliminate Manual Measuring and Reduce the Chances of Mistakes
  • Digitally Position Calibration Frame Quickly with Only 1 Technician Needed
  • Illustrated, Step-By-Step Instructions Guide the User Frame Placement Process Simply Follow the On-Screen Prompts

Perform

  • Color Coded Values Indicate Accurate Amount of Frame Movement Required (Orange, Yellow, Green)
  • Complete the Calibration Process with Any ADAS Capable Autel MaxiSYS Scan Tool
  • Run a Post-SCAN to Generate a Complete ADAS Calibration Report to Show Validation

Provide

  • Accurate and Easily Read Report Providing Submittable Proof of Vehicle Alignment and Calibration Accuracy Before Returned to Owner
  • PreSCAN / PostSCAN Report Easily Shared with Insurance Carrier by Print, Digital PDFs or Email
  • Run a Post-Scan to Generate a Complete ADAS Calibration Report to Show Validation
  • Pre-Scan System for Faults Prior to Servicing Vehicle Document Pre-Existing DTCs
  • Add Photographs Of Any Pre-Existing Vehicle Damage
  • Easy Identify ADAS Modules
  • Add Technician Notes Directly from the MaxiSys Scan Tool
  • Time & Date Stamps for Every Step Completed
  • Detailed Alignment and Calibration Validation Reports

Autel follows OE recommendations for completing ADAS calibrations indoors on level ground to ensure calibrations are completed correctly and returned to vehicle owners safely.

Maximize Shop Efficiency

Improve productivity by managing more of the repair process in shop to return vehicles to customers faster and safer all while meeting OEM specifications.

PLUS fully integrates with Autel’s MaxiSYS software to enable live positioning optical measurement.
