Corghi Artiglio AM500 32" Tire Changer Without Lever

Corghi Artiglio 500
Corghi AM500

Your Price: $16,995.00



Free Shipping
Product Code: AM500

Unloading Equipment

I have the equipment to unload it.
Ship to local freight terminal for will call.
Liftgate is needed [Add $135.00]

Qty:
Description Specifications


Corghi AM500 Artiglio 500

Automatic tire changer with 2nd generation “Leva la leva” (Without lever) technology Even more performing, even more ingenious

Corghi presents Artiglio 500, the new automatic tire changer with 2nd generation “Leva la leva” (Without lever) technology for vehicle, SUV and commercial vehicles wheels up to 32”. A natural evolution of Artiglio 50, this new tire changer maintains its best qualities and also presents many technical innovations: dynamic bead breaking device with a dual bead breaker disc, newly designed head group, more performing wheel support plate clamping, reinforced structure, great attention to ergonomics and control availability. All of this means a faster opera- ting speed without risks to the operator and the rims, even during the most critical phases, great simplicity of use and universality, for equipment whose features can be used 100%.

 Chorghi AM500 DYNAMIC BEAD BREAKING DEVICE with dual specular bead breaker disc. The radial positioning of the discs is made easier by an au- tomatism that is able to prevent any manual positioning by the operator. CONTROLLED PENETRATION (Patent pending) Precision, rapidity and re- peatability are guaranteed by the patented bead breaking system and by the perfectly synchro-nised and sym- metrical motions of the two discs.
 Chorghi AM500  Chorghi AM500  Chorghi AM500
 Chorghi AM500 INTUITIVE AND COMPLETE The multifunctional control console contains all the operating controls. Ideal for dynamic bead breaking and for rim and tire match mounting, thanks to the two dual control discs.  Chorghi AM500
MOTOINVERTER DRIVE SYSTEM The right torque at the right speed (7 - 18 RPM).
 Chorghi AM500  Chorghi AM500
 Chorghi AM500

EFFORTLESS OPERATION

A wheel lifter is fitted as standard, for effortlessly placing wheels of any type onto the turntable.

 Chorghi AM500  Chorghi AM500  Chorghi AM500
HEAD UNIT The demounting procedure uses the same working movements but absolutely no effort is required from the operator thanks to the “Leva la leva” (Without lever) technology incorporated in the head (Patent Pend- ing) - The mounting procedure doesn’t change: it is just as quick and convenient as before.  Chorghi AM500 Chorghi AM500
 Chorghi AM500  Chorghi AM500  Chorghi AM500
Top bead demounting procedure

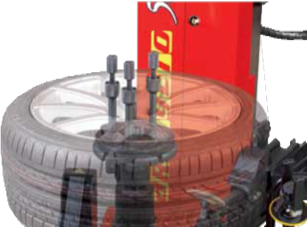

SAFE AND UNIVERSAL WHEEL CLAMPING The axial mounting turntable ensures rapid clamping while permitting bead breaking on both sides with- out having to turn the wheel itself. The constant working height (reverse rims excluded) has been optimised for ideal operator ergonomics with all wheel types.

 Chorghi AM500 Chorghi AM500

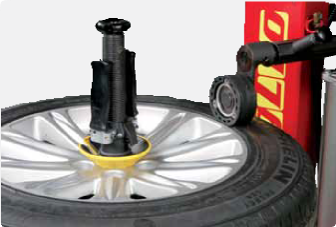

Axial mounting turntable allows quick, secure wheel clamping and bead breaking on both sides with no need to turn the wheel over (wheel is clamped on the machine just once).  Chorghi AM500



Quick second bead demounting procedure made possible by a patented disc movement.
 Chorghi AM500

Standard bottom bead demounting procedure with head

 Chorghi AM500  Chorghi AM500 Chorghi AM500
Rapid bottom bead demounting procedure with bead breaker disc (particularly useful with stiff sidewalls)

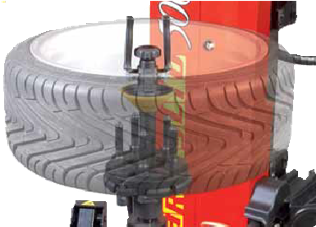

ERGONOMIC WORKING HEIGHT Machine working height designed to obtain perfect ergonomic movement with all wheel types: Ideal for all op- erators.  Chorghi AM500
ACCESSORIES ON REQUEST
 Chorghi AM500  Chorghi AM500

Pick-up rim kit

Universal flange for closed rims

 Chorghi AM500  Chorghi AM500

Reverse wheel flange

Pax system kit

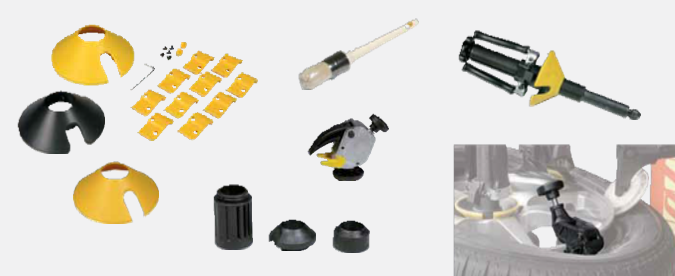

STANDARD EQUIPMENT
 Chorghi AM500

TECHNICAL DATA

Wheel Dimension Range

 Chorghi AM500

 Chorghi AM500

Rim Diameter  From 12” To 32”
Maximum Tire Diameter  47,2” (1200 Mm)
Maximum Tire Width  15” (From Wheel Supporting Base)
Tire Types Processed  Conventional, Low Profile And Run Flat
Turntable
Clamping  Mechanical-Manual
Drive System  2-Speed Motoinverter
Rotation Torque  811,8 Ft/Lbs (1100 Nm)
Rotation Speed  7-18 Rpm
Bead Breaker
Maximum Bead Breaking Range  26,4” (670 Mm)
Bead Breaker Stroke  21,2” (540 Mm)
Bead Breaker Force  1710 Lbf (7600 N)
Wheel Loading/Unloading
Operation  Pneumatic
Max Wheel Weight  187,4 Lbs (85 Kg)
Power Supply
Electric 1P 230V-0,98 Kw 50Hz/60 Hz Electric 1Ph (Alternative) 110V-0,98 Kw 50Hz/60 Hz Pneumatic Operating
Pressure  116 Psi (Minimum)
Weight (With Wheel Lifter)  837,7 Lbs (380 Kg)
