Launch Tech USA X-431 ADAS Standard ADAS Package, Tablet Not Included

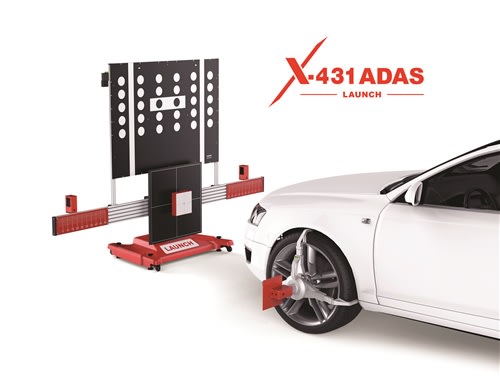

X-431 ADAS Calibration Equipment Standard Package

Launch Tech USA X-431 ADAS

The X-431 Throttle Not Included with This Package

Your Price: $8,499.00
Call us at 888-998-8665 to get the current promotion.

Product Code: LAD-ADASBASE

Qty:

Description

Launch Tech USA X-431 ADAS


HERE'S WHAT INCLUDED WITH STANDARD PACKAGE X-431 ADAS Calibration Frame 2x Wheel Clamps, Calibration Panel, Radar Reflector Scan Tool NOT Included
DESCRIPTION ADAS stand for Advanced Driver Assist Systems- These systems are designed to create a safer environment for the driver and those around him. These systems help reduce the possibility of an accident or collision. They have been around since the late 1990’s but used in the early to mid 2000’s in the US with the use of Adaptive Cruise Control or ACC. These vehicle’s made use of LiDAR distance detection but only offered a warning to the driver. Those systems would be classified as a passive system. Todays systems are more advanced and integrated. They use multiple sensor inputs such as cameras and radar to assist and warn the driver of surrounding danger.
PRODUCT FEATURES The modular structure and useful accessories enable you to configure the tool in the best way to suit your workshop. Easily and precisely adjust calibration frame to ensure vehicle is correctly centered. Can be used even without an axial measuring system. Multiple calibration function, wide car model coverage. All kinds of vehicle-specific calibration panels are available. Provide the instruction before beginning a calibration procedure.
X-431 ADAS Product Components

TYPES OF CALIBRATIONS Dynamic vs static calibration- There are two types of recalibration that are performed for ADAS. Static calibration – is a calibration that is performed in a controlled environment (Indoor shop with good lighting, level ground, and required space) with special targets placed in specific locations in front and around the vehicle. Also a scanner is required to communicate with the modules of that vehicle.

Dynamic calibration – also referred to as mobile calibration, is performed by driving your car for a prescribed distance, at a prescribed speed and in optimum weather conditions. A handheld device (scanner) that aids the process is attached to the car during the test. The purpose of this type of calibration is for the systems to get accustomed to the road so that they can be ready for all the functions they’re expected to perform. ****X-431 Throttle Not Included

CREATE CHANGE The increase in complexity has brought about a challenge in the auto industry. You can no longer perform basic procedures or replace components and not worry about it affecting these driver assist systems. And if you happen to unplug or replace a component that is attached to these systems you will find that it will require a recalibration to clear a warning or check engine light. You can’t just clear the code. Here is a list of the most common procedure that require a recalibration: Windshield Replacement Alignment Front and rear bumper replacement Side view mirrors Rear trunk or tailgate Front or rear collision
	CALIBRATE SENSORS Adaptive Cruise Control Lane Depature Warning Autonous Emergency Breaking Front Collision Warning Pedestrain Collision Warning Traffic Sign Recognition Night Vision Around View Monitoring Blind Spot Detection Parking Assistance Rear Collision Warning
ON THE ROAD




The X-431 ADAS is the latest automotive calibration equipment. It works in conjunction with the LAUNCH scanners for calibration of camera- and radar-based ADAS systems. The X-431 ADAS allows the operator to locate the camera calibration panels and the radar reflector panel in the correct position to ensure the system calibration can be carried out quickly and accurately. The X-431 ADAS is used to recalibrate the ADAS camera and radar, when the sensors have been removed, replaced or repaired.

Launch Tech USA X-431 Throttle

DESCRIPTION

X-431 Throttle is the newly developed high-end comprehensive diagnostic equipment with charging base based on the Android™ 7.1 system, supports dual 5GHZ WIFI communication, has a wide coverage of models, strong diagnostic capabilities, accurate detection data and other characteristics. And the equipment protection level is IP65.

FEATURES:

Android™ 7.1 custom system, Qualcomm 8-core processor, 10.1-inch capacitive touchscreen, QC3.0 quick charge technology and other stronger configurations.
Whole new industrial design, with soft rubber sheath on the four corners of the product to effectively prevent from collision, protection level is IP65; damping shaft with about 180 degrees of free adjustment, supports three modes: carrying & hanging, supporting and normal.
Upgraded camera, front 8 million pixels and rear 13 million pixels.
Fifth Generation WiFi technology, 4 times higher than the theoretical transmission rate of previous generation.
Wide coverage of vehicle models, strong diagnostic functions (Supports Intelligent diagnosis, Remote diagnosis, Read DTCs, Clear DTCs, Data streams, Actuation test), accurate diagnostic data, more special functions.
Display I/M Readiness Status.
Support one-click upgrade for operating system, clients, vehicle model software and firmware.
Support remote diagnosis technology between equipment and equipment terminal, and between equipment and remote desktop.
Support a diversity of data streams display modes.Support extension modules: Battery, Borescope, Ignition, Multimeter, Oscilloscope, Sensor.
Support diagnostic feedback. In case of encountering abnormal vehicle model software and functions while using, the problem can be fed back to the technical personnel who will follow up and deal with it.
My Report can view Comprehensive diagnostic reports, Remote diagnostic reports, Datastream playback.
Software Setting includes My connector, Diagnostic connector management, Connector activation, and Firmware repair, etc.
