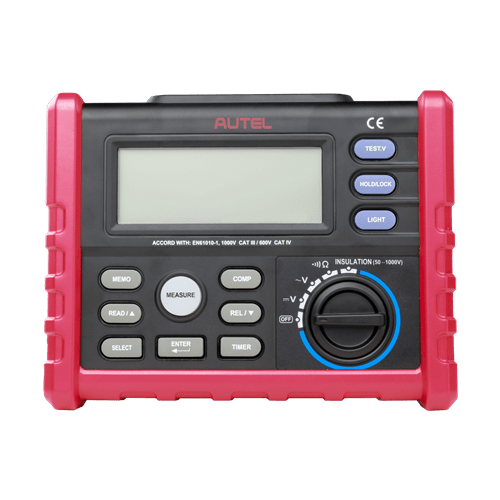

Autel MaxiEV ITS100

MaxiEV ITS100

Alternative Views:

Your Price: $695.00

Product Code: AULITS100

Qty:

Description

Specifications

MaxiEV ITS100

High voltage electrical component insulation and resistance tester

The MaxiEV ITS100 is a EV Insulation resistance tester. With the ITS100, technicians can apply a high DC voltage (50V, 100V, 250V, 500V, or 1000V) to the tested component or system and measure the resulting current flow to identify issues like damage, deterioration, or contamination of the insulation. Provides easily interpretable visualized data for informed decision-making during vehicle maintenance. Includes a one-year Limited Warranty.

HARDWARE SPECIFICATIONS
NSULATION RESISTANCE RANGE	0.01MΩ ~ 10.00GΩ
INSULATION TEST OUTPUT VOLTAGE	50V, 100V, 250V, 500V, 1000V
RESISTANCE TEST	0.01Ω~200Ω
DC VOLTAGE TEST	0.1~ 1000V
AC VOLTAGE TEST	0.1V~750V
DIMENSIONS (WEIGHT)	18014065mm (0.9kg)

OUTPUT VOLTAGE

50V (0~20%)

100V (0~20%)

250V (0~20%)

500V (0~20%)

1000V (0~20%)

RANGE

0~
20 MΩ

20~
200 MΩ

200~
500 MΩ

0~
20 MΩ

20~
200 MΩ

200 MΩ~
1.00 GΩ

0~
20 MΩ

20~
200 MΩ

200 MΩ~
250 GΩ

250 MΩ~
2.50 GΩ

0~
20 MΩ

20~
200 MΩ

200~
500 MΩ

500 MΩ~
5.00 GΩ

0~
200 MΩ

200~
1000 MΩ

1.00~
5.00 GΩ

5.00~
10.00 GΩ

10.00~
30.00 GΩ

30.00~
100.00 GΩ

RESOLUTION

0.01 MΩ

0.1 MΩ

10 MΩ

0.01 MΩ

0.1 MΩ

10 MΩ

0.01 MΩ

0.1 MΩ

1 MΩ

10 MΩ

0.01 MΩ

0.1 MΩ

10 MΩ

0.1 MΩ

1 MΩ

0.1 GΩ

TEST CURRENT

1mA@50K

1mA@100K

1mA@250K

1mA@500K

1mA@1000K

ACCURACY

±(3%rdg+5dgt)

±(5%rdg
+5dgt)

±(3%rdg+5dgt)

±(5%rdg
+5dgt)

±(3%rdg+5dgt)

±(5%rdg
+5dgt)

±(3%rdg+5dgt)

±(5%rdg+5dgt)

±(3%rdg+5dgt)

±(5%rdg
+0.1 GΩ)

±(10%rdg
+0.2GΩ)

±(20%rdg
+0.2GΩ)

±(30%rdg
+0.3GΩ)
