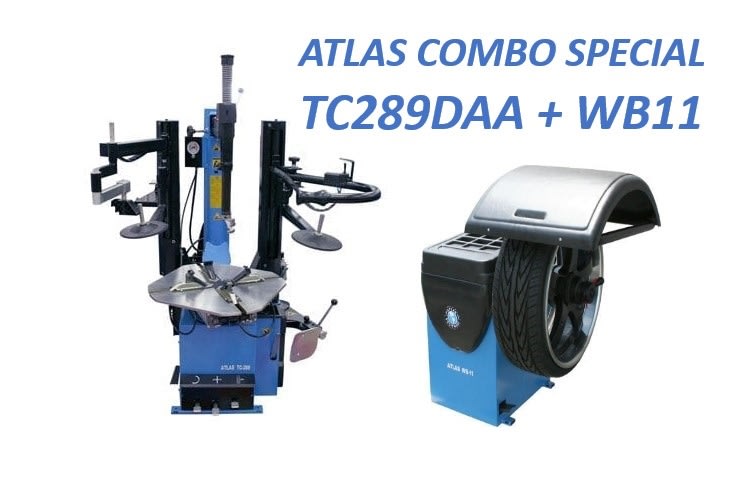

Atlas Automotive Equipment Atlas Equipment TC289DAA Rim Clamp Tire Changer + WB11 Wheel Balancer Combo Package

Tire Changer & Wheel Balancer Combo Package:

Atlas® TC289DAA Tire Changer

• Rim Clamp/Swing Arm Tire Changer
• Left Hand and Right Hand Assist Arms Included
• Extra Large Turntable, More Clearance
• Built-in "Beadblaster"
• Adjustable Bead Breaker Plate
• Adjustable jaws, 3 mounting positions
• Oiler, Filter, Regulator included (external air supply required)
• Plastic Protectors included
• Tire Tool, Lube Bucket, and Lube Brush Included
• Inflation Box w/ Gauge Included

Atlas® WB11 Wheel Balancer

• Computer Controlled Spin Balancer
• Static and dynamic balancing modes.
• Rapid optimization (OPT)
• Self Diagnosis/Self Calibration
• Display in grams or ounces, in mm or inches
• 4 Centering Cones, Plastic Quick-Nut, Wheel Weight Pliers, & Wheel Measuring Calipers Included
• This part number WILL CALL ONLY

This combination package includes the Atlas® TC289 rim-clamp swing arm tire changer, Left Hand Assist Arm, Right Hand Assist Arm & the Atlas® WB11 computerized spin balancer. This combination is perfect for farms, homeowners, and all sizes of shops looking to change and balance tires, including custom rims. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® 1 year parts only warranty. This part number is WILL CALL ONLY.

Atlas® TC289 Specifications

• External Locking Rim Dimensions (From Narrow Position to Wide Position): 11 7/8" to 27 7/8"
• Internal Locking Rim Dimensions (From Narrow Position to Wide Position): 13 7/8" to 29 7/8"
• Maximum Tire Diameter: 47"
• Maximum Wheel Width (Bead Breaker): 18"
• Table Motor: 1 HP
• Turntable Rotating Torque: 885 ft/lbs.
• Bead Breaker: 5500 LB. Force
• Air Requirement: 90-110 PSI (MUST NOT EXCEED 140 PSI)
• Electric Requirement: 110volt
• Shipping Weight: 620 lbs

• Max Tire Diameter: 39"
• Rim Sizes (Cars & Light Trucks): 10" - 32"
• Rim Width: 1 1/2" - 20"
• Shaft Size: 40mm
• Max Wheel Weight: 150 lbs.
• Balancing Speed: 150 rpm
• Data Entry: All Dimensions Manual
• Measurement: Standard or Metric
• Accuracy: 1 gram
• Weight Position Resolution: 1.4 Degrees
• Self Calibrating: YES
• Motor: 1/4 Horsepower
• Electric Requirement: 110volt
• Shipping Weight: 400 lbs

Accessories Available

• Center Post Adapter
• Quick Change Plastic Head Kit
• Replacement Plastic Insert Kit for MD Head
• Light Truck Adapter Kit
• Universal Lugcentric Adapter
