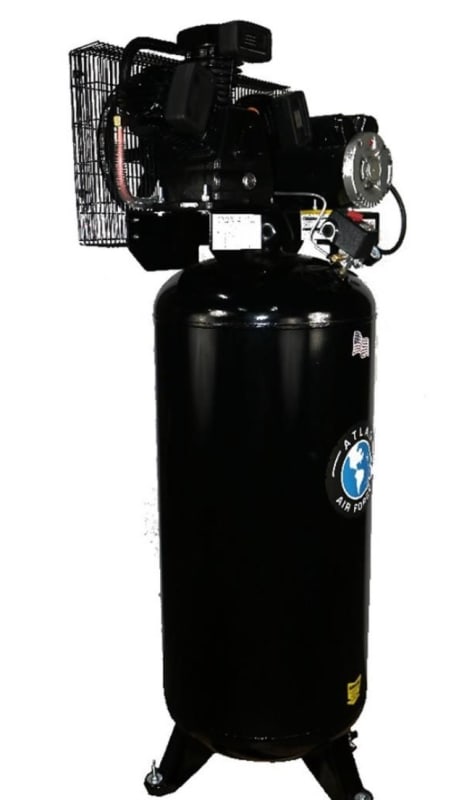

Atlas Automotive Equipment 60 Gallon Vertical Air Compressor

Features and Benefits:

• 1-Stage Pump
• 5hp Running
• 60 Gallon Vertical Tank (Made in the USA)
• Air Output 90-125 PSI
• Extremely Quiet Operation
• Set of Vibration Dampening Pads Included
• Hands free tank drain extension
• Compressor oil drain extension tube
• Finned tank inlet tube for reduced tank water accumulation
• Heavy Duty metal Belt Guard
• Electric: 220volt/1phase
• 1 Year Parts Only Warranty

The Atlas® Air Force AF5 is our lowest priced air compressor capable of producing enough PSI to operate our Atlas® SBC420 entry level sandblast cabinet for short periods of time. The AF5 does not produce enough air to "run" the sandblast cabinet for an extended period of time. To operate any of our Atlas® sanblast cabinets correctly and efficiently the customer should consider the Atlas® AF6 or larger air compressor.

The Atlas® AF5 operates between 90 and 125 PSI and features an oversized 3 cylinder cast iron reciprocating air compressor pump that produces a large volume of air at a very competitive price.

The Atlas® Air Force air compressors are powerful, belt driven reciprocating air compressors designed and built to offer years of trouble-free service. The Atlas® Air Force shop compressors are built to the same exacting standards as the entire line of Atlas® professional grade automotive equipment

Atlas® Air Force AF5 Specifications

• Motor Running: 5 Horsepower
• Pressure Setting: 90-125 PSI
• Delivered CFM at 40 PSI: 20
• Delivered CFM at 90 PSI: 18
• Tank Capacity: 60 Gallons
• Compressor Pump: 3 Cylinder, 1-Stage
• Air Outlet Size: 1/2" NPT
• Overall Dimensions: L 28" x W 18" x H 68"
• Motor/Electrical Requirement: 220volt Single Phase, 30 amp breaker required
• Shipping Weight: 400 lbs
